KIT AY/255
KIT Electromechanical articulated motor HIGH SPEED BRUSHLESS, low voltage, super intensive use, with native encoder onboard, irreversible, ideal for swing gates with leaf up to 2.5 meters of length, with mechanical stopper in opening and closing. With digital controller (on AY/250/M motor) and standard version of short arms.
Brushless
Intensive use
High Speed
Digital Encoder
Residential sector
Commercial sector
Expand KIT composition
-
N. 1 - AY/250/M (MASTER)
Electromechanical articulated motor HIGH SPEED BRUSHLESS, low voltage, super intensive use, with native encoder onboard, irreversible, ideal for swing gates with leaf up to 2.5 meters of length, with mechanical stopper in opening and closing. With digital controller, without articulated arms. -
N. 1 - AY/250/S (SLAVE)
Electromechanical articulated motor HIGH SPEED BRUSHLESS, low voltage, super intensive use, with native encoder onboard, irreversible, ideal for swing gates with leaf up to 2.5 meters of length, with mechanical stopper in opening and closing. Without digital controller, without articulated arms. -
N. 2 - LT336
Arms short for articulated AYRON series. -
N. 1 - H93/RX20/I
Plug-in receiver fixed code 2 channels 433,92 Mhz (50 storable codes) for control unit series H70, B70, EDGE, CTRL and F70. -
N. 2 - SYNUS/2
Dual code transmitter (modality fixed code or rolling code), 433,92 Mhz. 2 channels, with radio for copy. -
N. 1 - R90/F4ES
Pair of external photocells synchronized 24V AC/DC (max. 4 pairs). -
N. 1 - FIFTHY/24
LED flashing light series FIFTHY 24V with integrated antenna. -
N. 1 - R99/C/001
Signboard "Automatic Opening".
| 230V AC - 50Hz | |
| 24V | |
| 150W | |
| Intensive use | |
| 50 - 200 N m | |
| -20+55° C | |
| IP44 | |
| Irreversible | |
| 4 - 1,5 Rpm | |
| 10-18 s | |
| Mechanical stopper in opening and closing | |
| B70/2ML (AY/250/M) | |
| Digital native encoder SENSORLESS 48 PPR | |
| Internal lever or external lever with cord (optional) | |
| 2 internal batteries 12V DC 1.2 Amp/h (inside AY/250/S) | |
| 800 | |
| 245 x 189 x 270+60 | |
| 28,7 | |
| 16 |
Dimensions
Predisposition for standard installation
KT218
Gate pull bracket for series articulated.
Gate pull bracket for series articulated.
KT249
Column mounting plate for AYRON series.
Column mounting plate for AYRON series.
B71/BC
Batteries charger for Brushless digital controller B70/1DC - B70/1T.
Batteries charger for Brushless digital controller B70/1DC - B70/1T.
BT12V12
Battery 12V 1.2 Ah (1 pc).
Battery 12V 1.2 Ah (1 pc).
B74/BCONNECT vers. HW2
Module WI-FI B-CONNECT - Remote management and programming system in IP web browser mode via Wi-Fi hot spot P2P connection for Brushless control units (B70/2ML - EDGE1 - CTRL - B70/1DC - B70/1DCHP - B70/1T - B70/1THP - F70/IPU36).
Module WI-FI B-CONNECT - Remote management and programming system in IP web browser mode via Wi-Fi hot spot P2P connection for Brushless control units (B70/2ML - EDGE1 - CTRL - B70/1DC - B70/1DCHP - B70/1T - B70/1THP - F70/IPU36).
B71/PBX24/BOX
Hybrid inverter, “Network Assisted” version, for powering the automation. Also provides a battery-charger function thanks to the connection to the solar panels or mains supply for powering the 24V DC brushless digital controllers with a mains voltage of 230V AC.
Hybrid inverter, “Network Assisted” version, for powering the automation. Also provides a battery-charger function thanks to the connection to the solar panels or mains supply for powering the 24V DC brushless digital controllers with a mains voltage of 230V AC.
B71/PBX/BOX
Hybrid inverter, “Full Solar” version, for powering the automation. Also provides a battery-charger function thanks to the connection to the solar panels for powering the brushless digital controllers.
Hybrid inverter, “Full Solar” version, for powering the automation. Also provides a battery-charger function thanks to the connection to the solar panels for powering the brushless digital controllers.
LT337
Arms long for articulated AYRON series.
Arms long for articulated AYRON series.

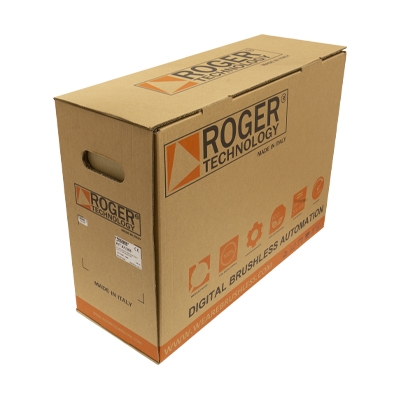

Size in Cm: Lenght: 53,5 - Widht.: 19,5 - Heigth: 39,5
